Technical Specificatins

*To ensure uninterrupted suppluying and shipping, some parts may differ from those listed.
Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.

General Information

• Top Speed
• 37 - 42 mph for both pedal-assist and throttle

• Range per Charge
• 104 - 235 miles with PAS, or 70 - 76 miles w/o PAS

• Max Load
• ≤ 330 lbs to ensure the performance and safety

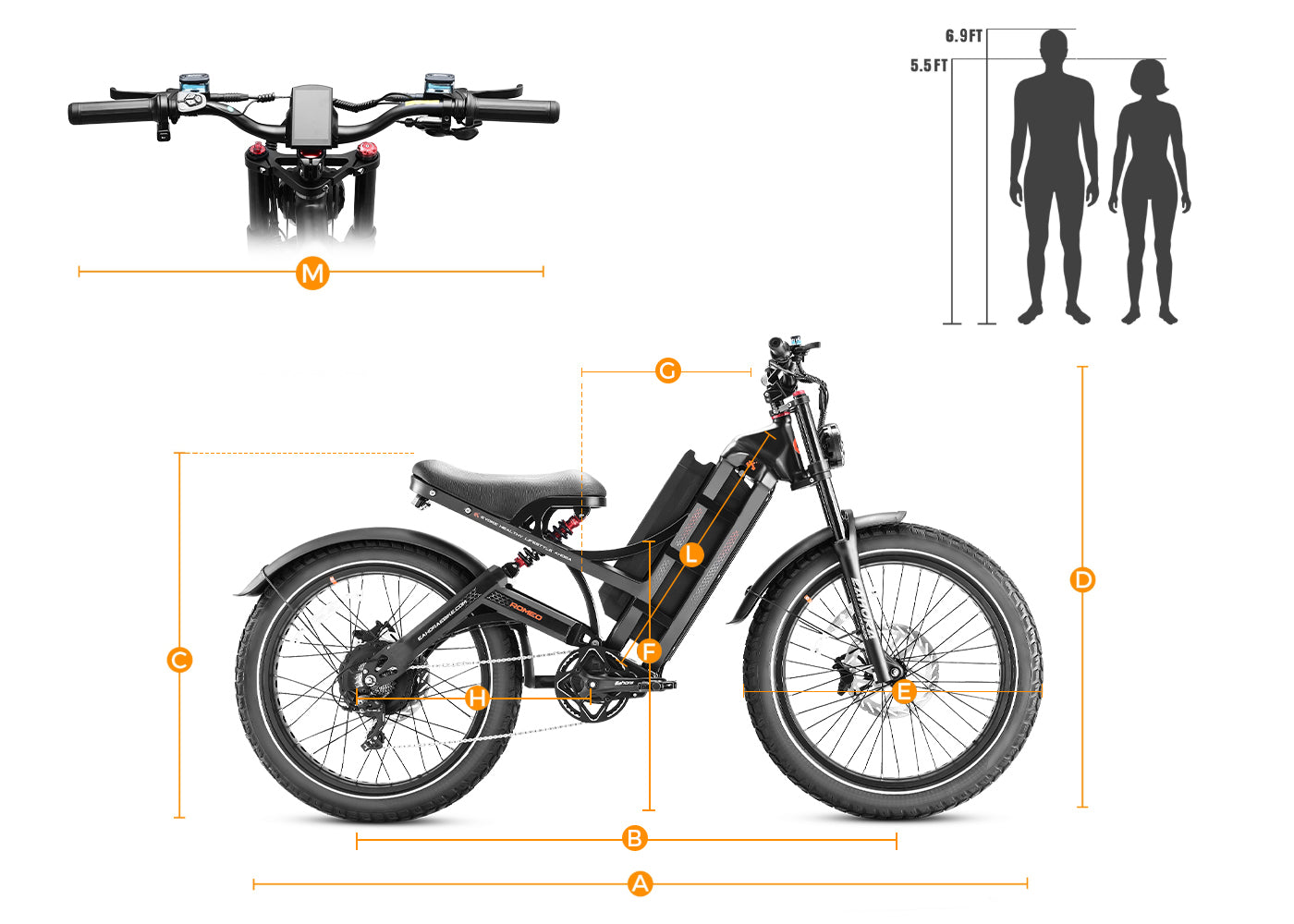

• Rider Height
• 5'7" - 6'4", or inseam ≥ 28.7"

• Bike Weight
• 223.2 lbs with the battery (36.6 lbs) installed

• Ideal Use
• IPX6 weather-proof, off-road / mountain / urban riding

Riding with Unmatched Power

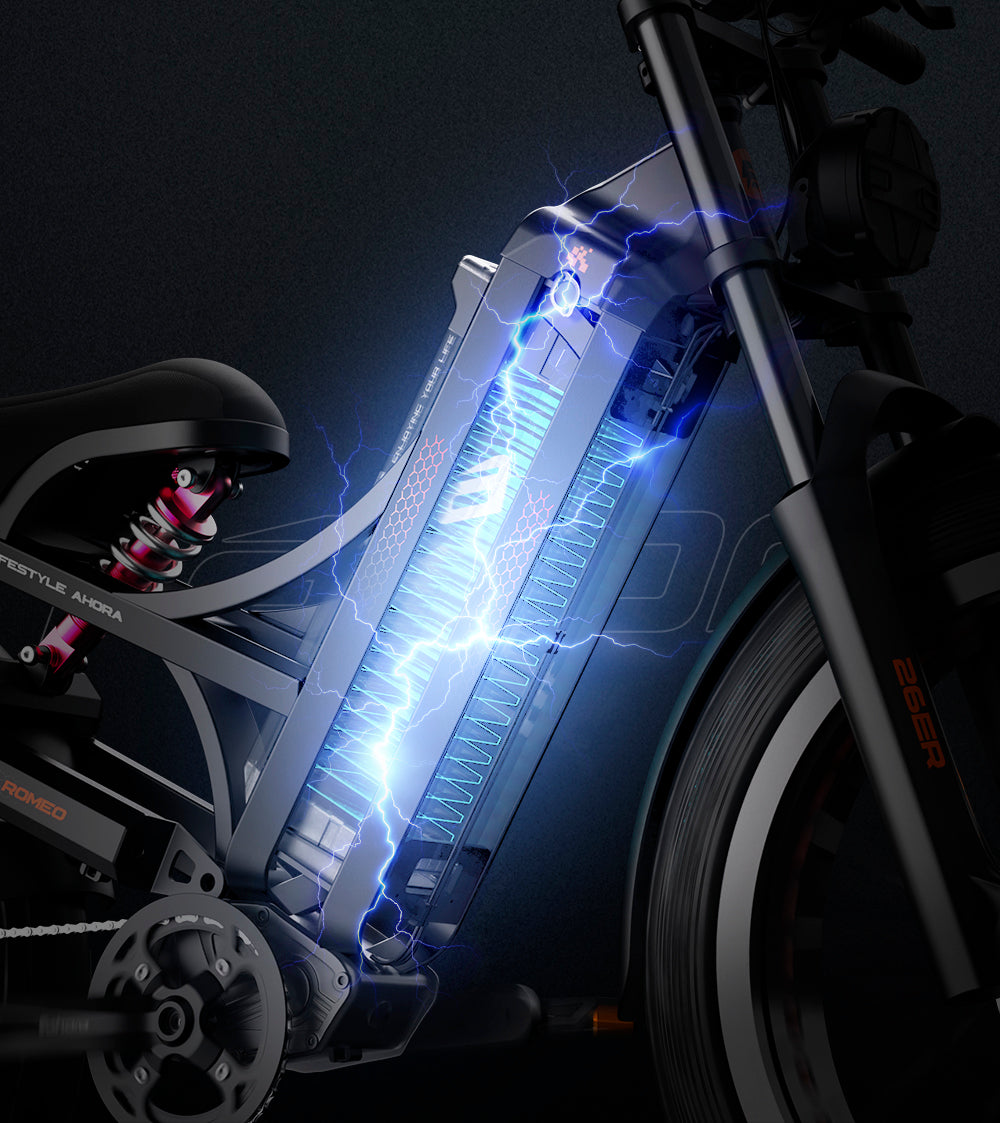

• Battery Capacity
• 4200 Watt·hour (60V 70Ah)

• Cells Type
• Lithium-ion pouch cells, Grade A

• Battery Lifespan
• ≥ 1,200 charge cycles to 80% of capacity

• Motor Power
• 3,000 Watt （3,800 Watt Peak)

• Motor Torque
• 120 Newton·metre (max)

• Motor Type
• Brushless rear hub motors, brushless, IPX6

• PAS Levels
• 5 Levels with Cadence Sensor

• Throttle Type
• 5 Levels twist, slightly delayed response (safe design)

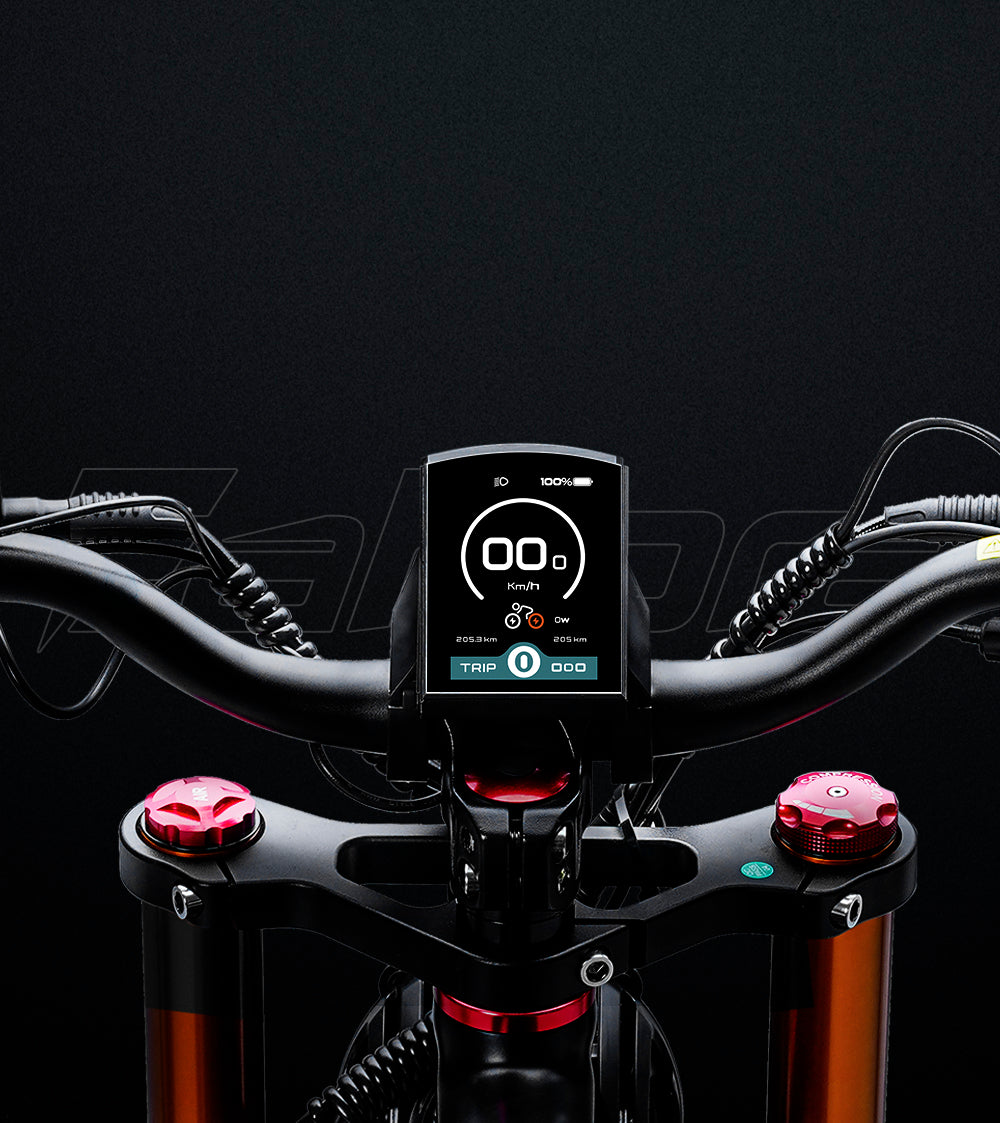

• Display / Dashboard
• 4" color LCD, motors switch, Bluetooth, USB charge port

• Shifting Gears
• Shimano 7s 14-28T, 44T chainring

• Battery Charger
• 67.2V 7A  Quick charger, 8-12H charge time

• Additional Modes
• Cruise Control, 6 km/h Walk

Biking Safely & Confidently

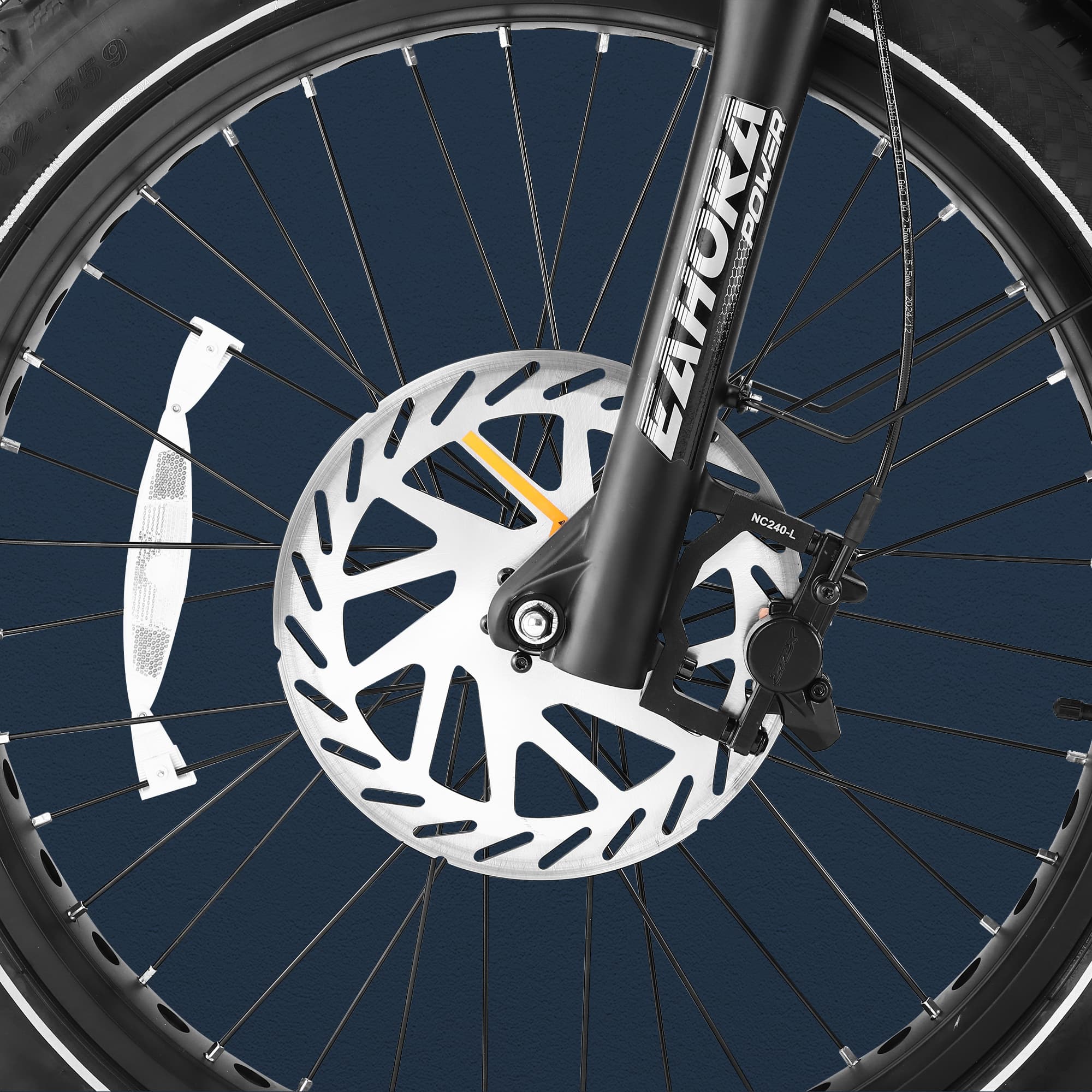

• Brake System
• Hydraulic disc brakes with motor cutoff

• Brake Rotors
• 240mm (φ) x 3.0mm (t) steel rotors

• Brake Caliper/Pads
• 2-Piston calipers with semi-metallic pads

• Bike Frame
• High-carbon steel 26" x 18" frame

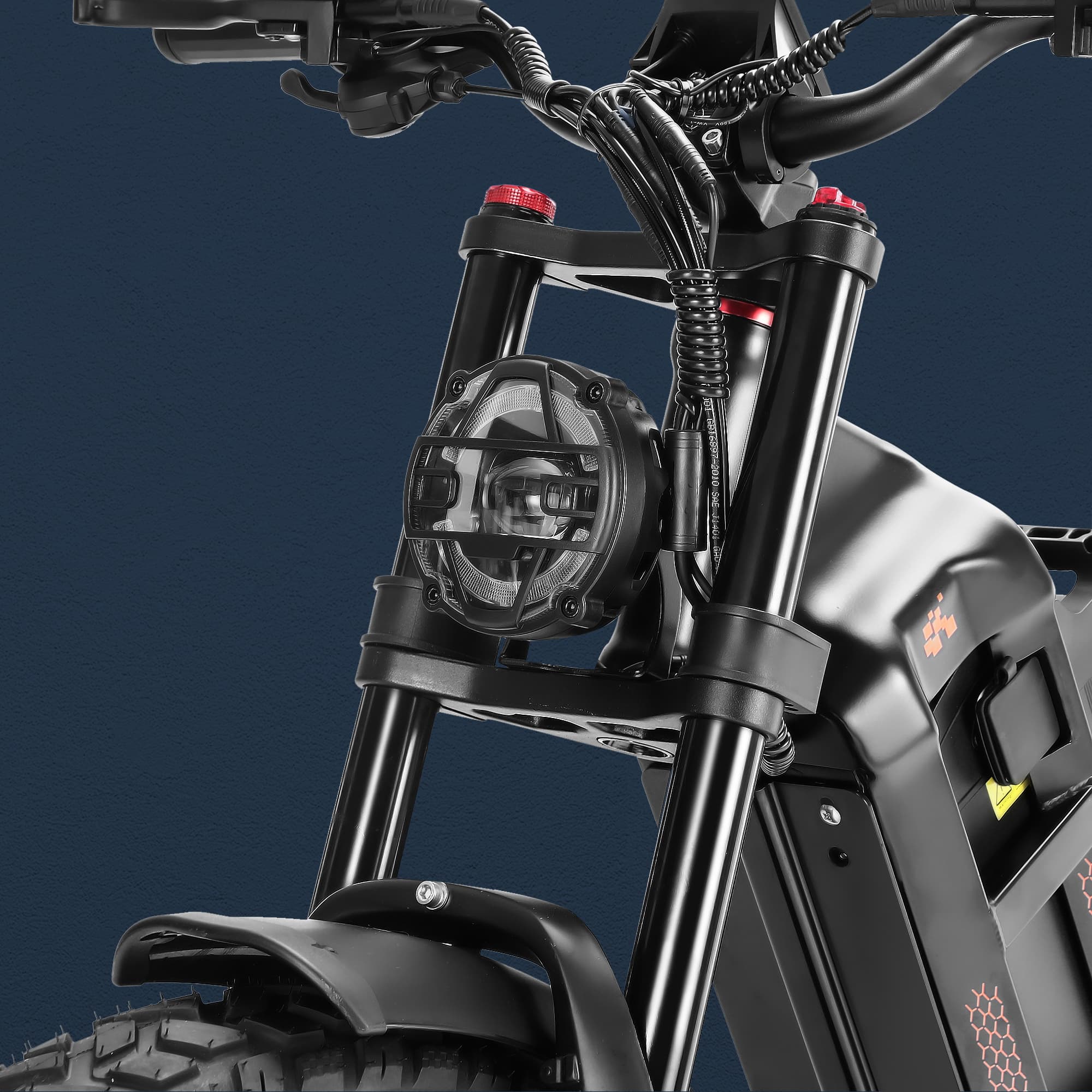

• Front Fork
• Adjustable air suspension, 100mm travel

• Shock Absorber
• Air suspension with damping, 50mm travel

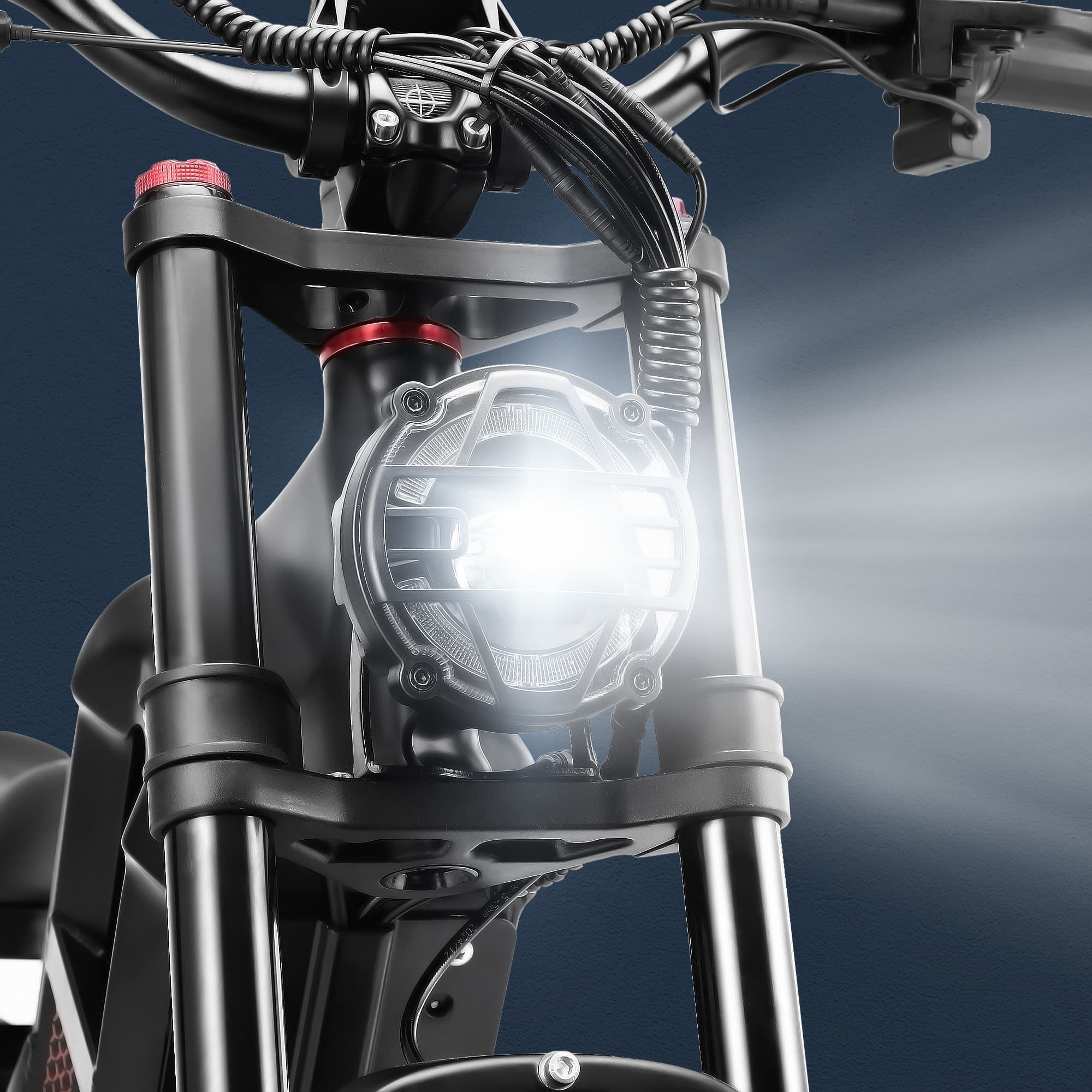

• Head Light
• 2,500 Lumens (25W)  LED with built-in horn

• Tail Light
• LED with integrated brake signal blinker

• Additinal Reflectors
• Pedals, spokes, tires

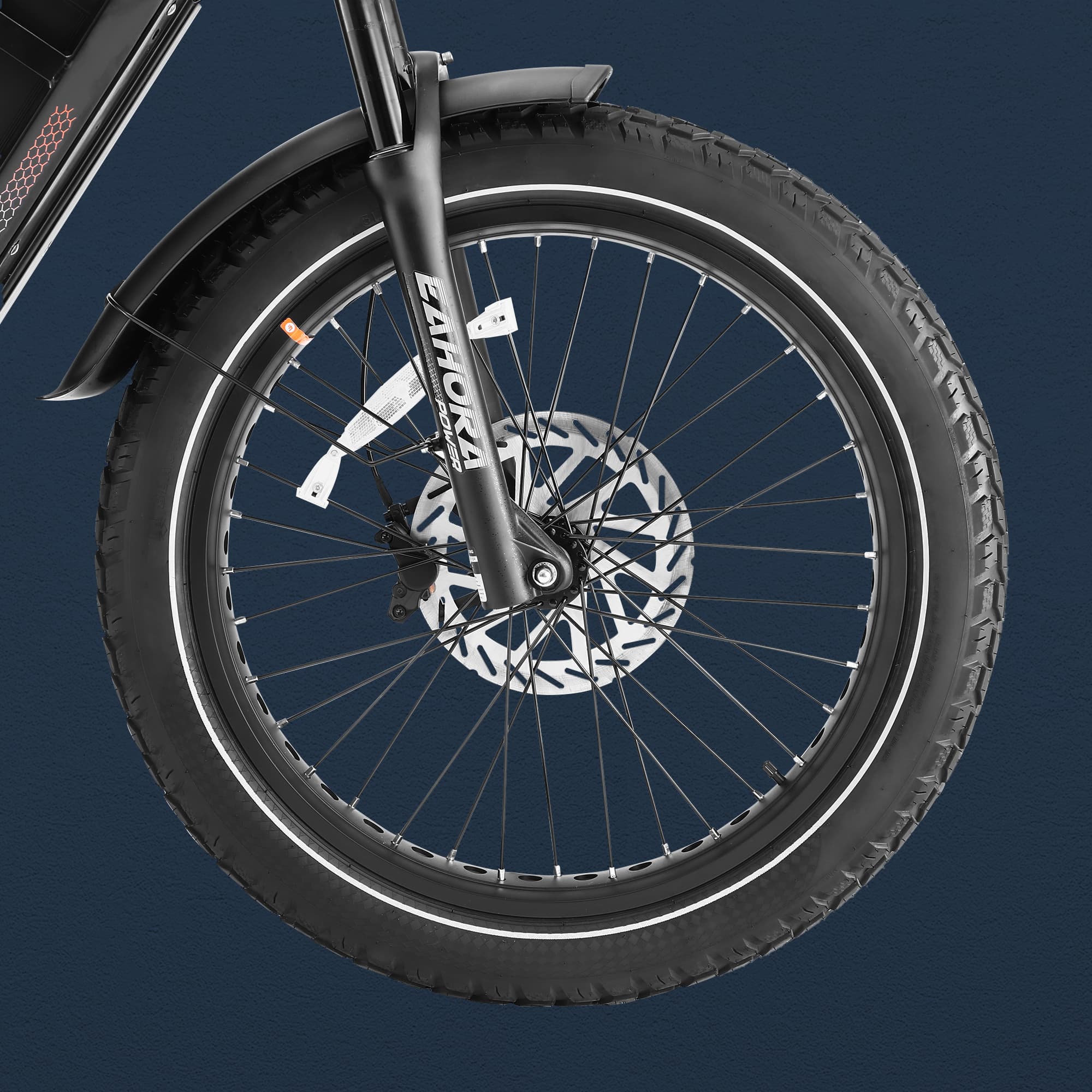

• Tire Type
• 26" x 4.0" tires with tube (28-33 psi)

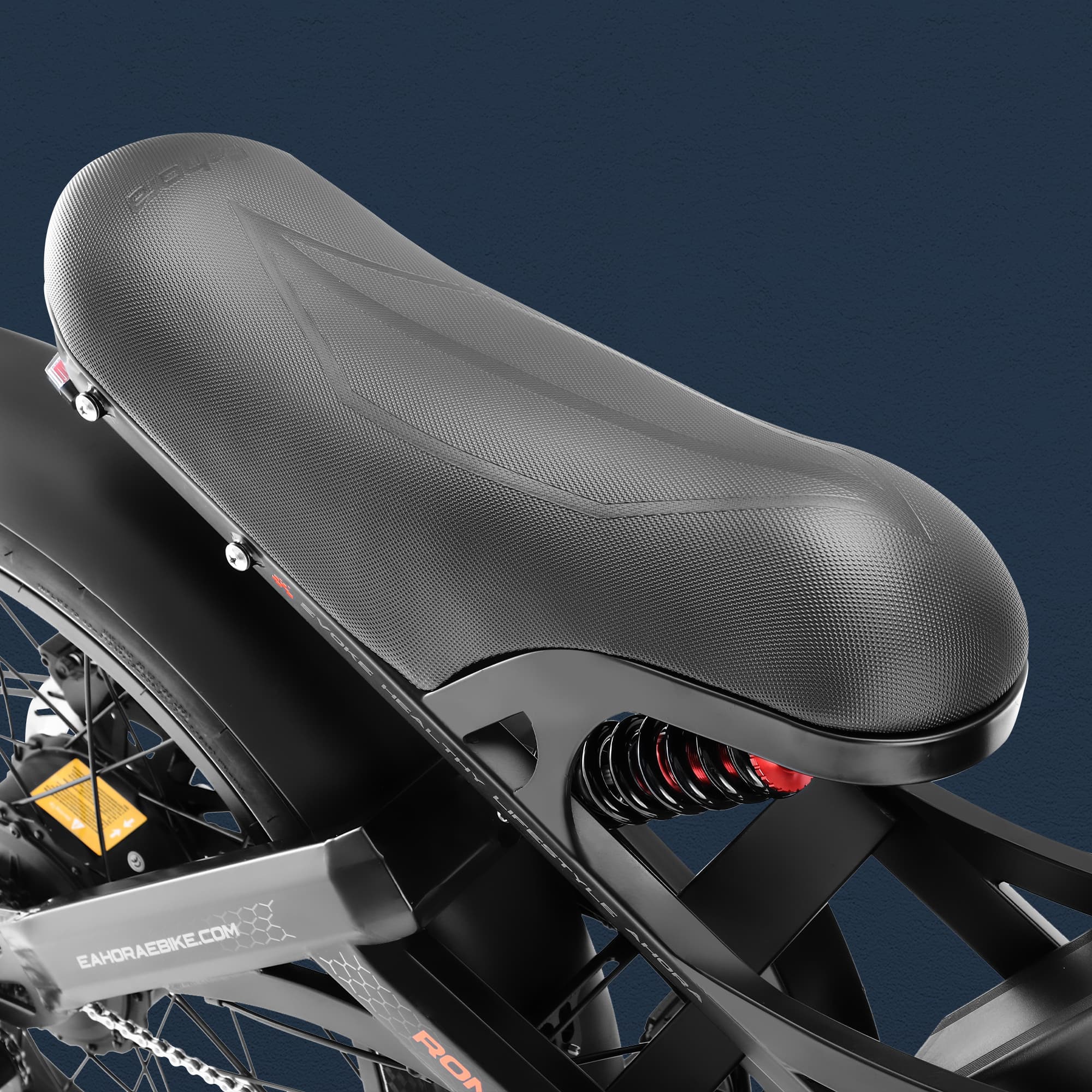

• Saddle
• Leather with memory foam, pressure-relief design

• Handlebar
• Aluminum 720mm x 31.8mm (φ, center), rise

Components & Accessories

• Bell
• Electric horn built-in headlight

• Crankset
• 170mm Aluminum, 44T chainring w/ single-sided cover

• Pedals
• WELLGO 16/9 aluminum alloy platform

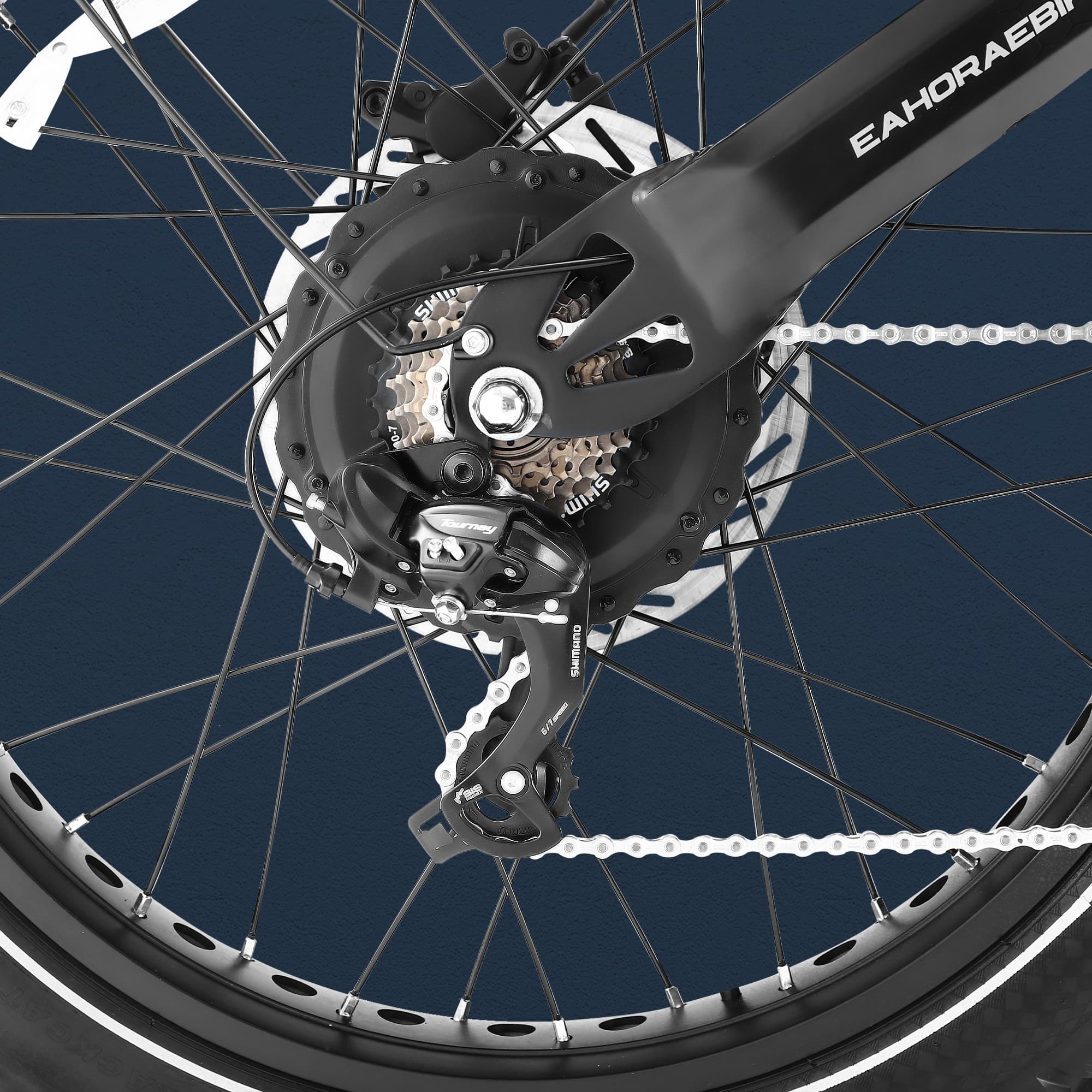

• Derailleur
• SHIMANO RD-TY300 7 speed

• Shifter
• SHIMANO ASLTX50R7CT 22.2mm x 2400mm

• Freewheel / Cassette
• SHIMANO MF-TZ500-7 14-28T

• Rims
• 36H aluminum alloy rims

• Spokes
• Black stainless steel 13 Gauge

• Grips
• 120mm x 22.2mm (φ) rubber, ergonomic, anti-slip

• Seatpost
• No Seatpost for motorcycle-style seat

• Headset
• Integrated threadless headset

• Stem
• 31.8mm (φ, handlebar) * 35° A-head

• Kickstand
• Aluminum alloy heavy-duty

• Racks & Baskset
• Optional rear rack, basket

• Fenders
• Included plastic front and rear fenders
